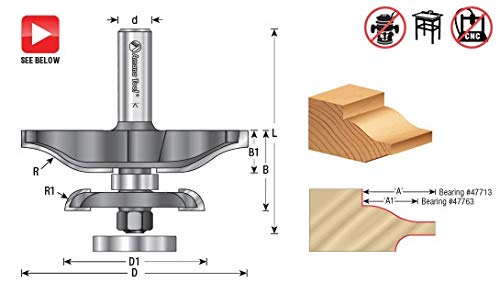

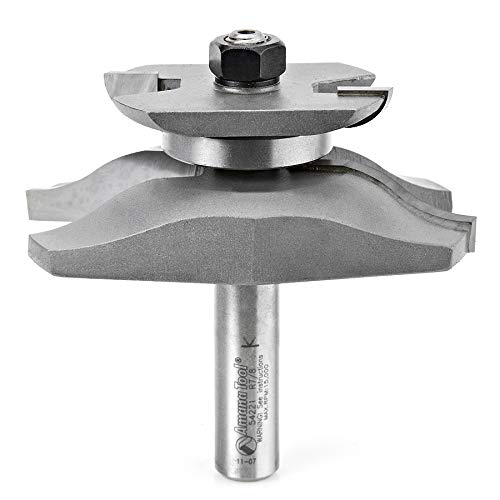

Ogee Raised Panel Router Bits with Back Cutter. Raised panels fit standard panel grooves, even when the panel thickness exceeds 5/8." As the main cutter raises the front of the panel, the back cutter mills the back to produce a standard-thickness tongue around the panel. Each tool is supplied with two different guide bearings, enabling you to stage cuts on curved edges effectively and safely. All tools have 1/2" shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Multiple passes recommended. Maximum RPM 12,000.
Replacement bearing 47713 (8MMx16MM) & 47763 (8MMx1-1/4")
Back cutter is 55435=1/4" kerf, 5/16 radius cutter
Must deduct (usually 3/8") for allowing the panel to recess into the frame
